Automatic Solid Wood Finger Shaper Gear Milling Comb Woodworking Machine Fidget Spinner Mxb3516 for Finger Jointing Projects

Customization: Available
After-sales Service: 1 Year and All Life
Automatic Grade: Full-Automatic

Product Description

Basic Specification

Model NO.
Mxb3516
Warranty
1 Year
Field
Solid Wood
Transport Package
Container
Specification
Customized
Origin
China
HS Code
846592
Production Capacity
200sets/Year

Product Overview

Our company specializes in professional woodworking machinery, equipped with advanced know-how, precise measuring methods, and first-grade craftsmanship developed over forty years of dedicated effort. The manufacturing process is certified under the ISO9001 system and holds CE certification, ensuring international quality standards and reliable performance.

We focus on researching and producing high-efficiency wood processing machines such as hydraulic composers, finger shapers, and finger jointers. these solutions are primarily utilized for the production of edge-glued panels, solid wood furniture, solid wood doors, windows, and engineered wood flooring.

As a leading brand in the wooden machinery field, our equipment has successfully served clients in Russia, Japan, Korea, South Africa, and South-East Asia. Excellent quality and competitive efficiency greatly enhance production capabilities for woodworking partners worldwide.

Key Characteristics

⚙️
Multi-function Capability: Integration of trimming, milling, waste handling, shivering, and chip removing in one process.
🎯
High-Precision Engineering: Equipped with high-precision shaper spindles, tightness bearings, and adjustable working height for perfect workpieces.
🛠️
Reliable Performance: Utilizes imported guide rails and bearings to ensure long-term stability and durability.
🛡️
Enhanced Safety: Built-in pneumatic fixtures ensure the safety of operators and secure workpiece handling.
Hydraulic Efficiency: Worktable movement relies on oil cylinder expansion, enhancing efficiency while reducing labor intensity.
💻
Advanced Control: Featuring adjustable worktable speed and full PLC electrical control for precise operation.

Technical Parameters

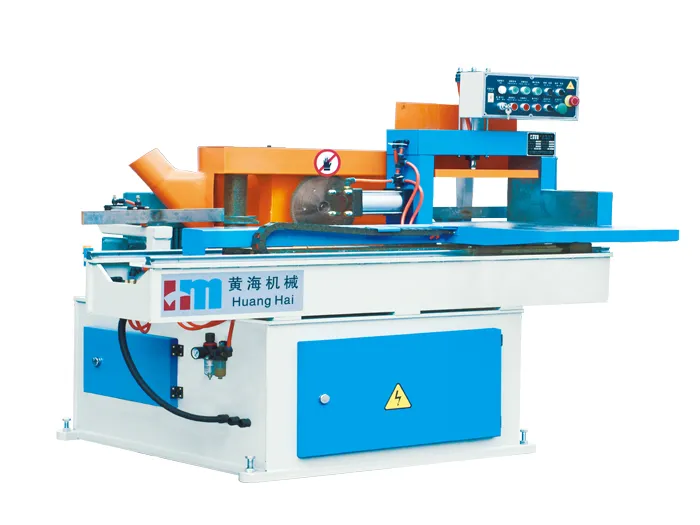

ModelMXB3516
Maximum machining width600mm
Maximum machining thickness12-150mm
Min. working length80mm
Motor power for shaping11kw
Shaper spindle diaΦ50
Shaper spindle speed6500rpm
Motor power for cutting-off3kw
Saw blade dia, for cutting-offΦ250
Cutting off saw speed2800rpm
Scoring power0.75kw
Scoring saw diaΦ150
Scoring saw speed2800rpm
Hydraulic system power1.5kw
Hydraulic system pressure1-3Mpa
Pressure of air system0.6Mpa
Worktable size700*760mm
Total weight1000kg
Overall dimensions (L*W*H)2200*1400*1450mm

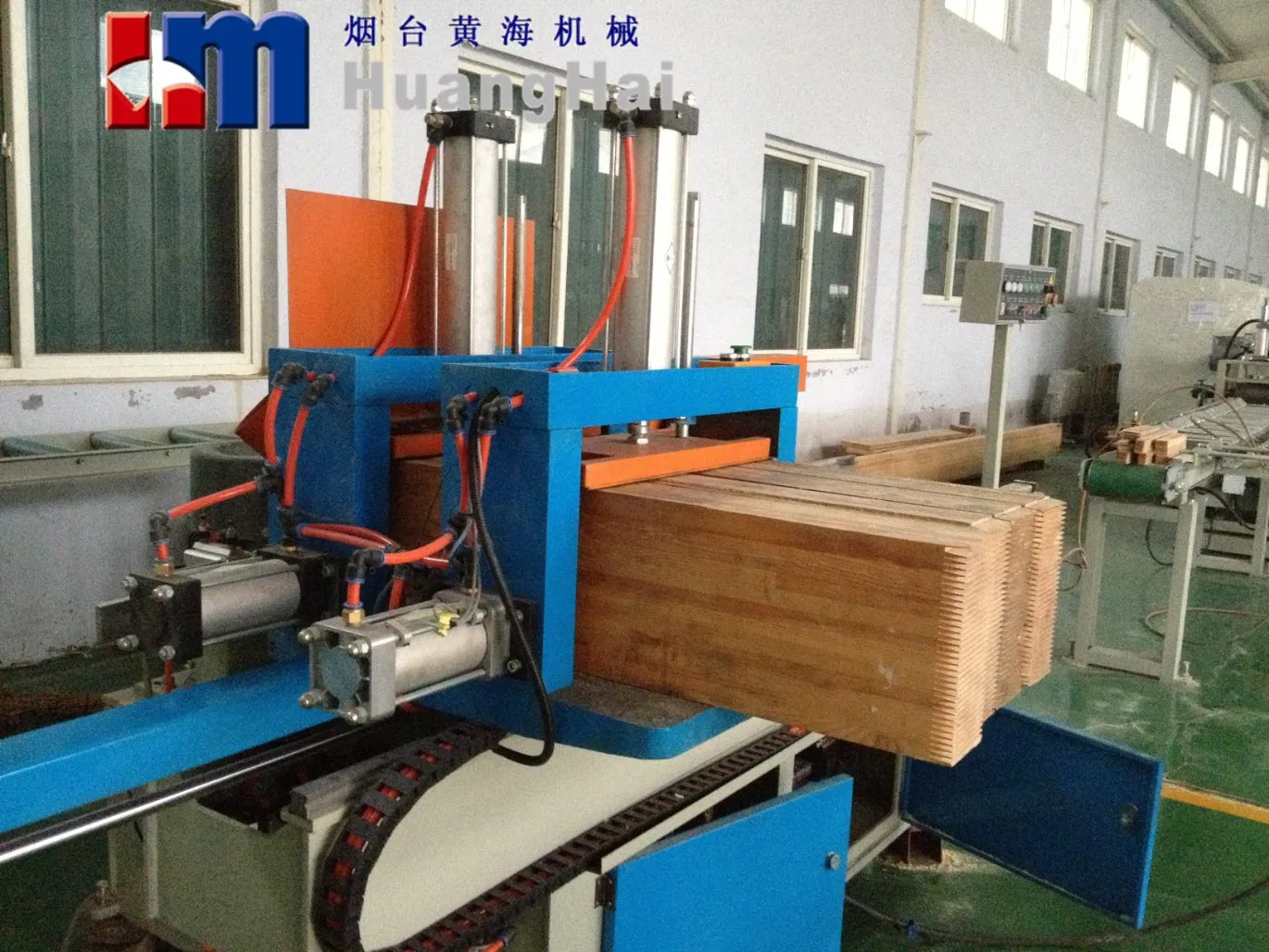

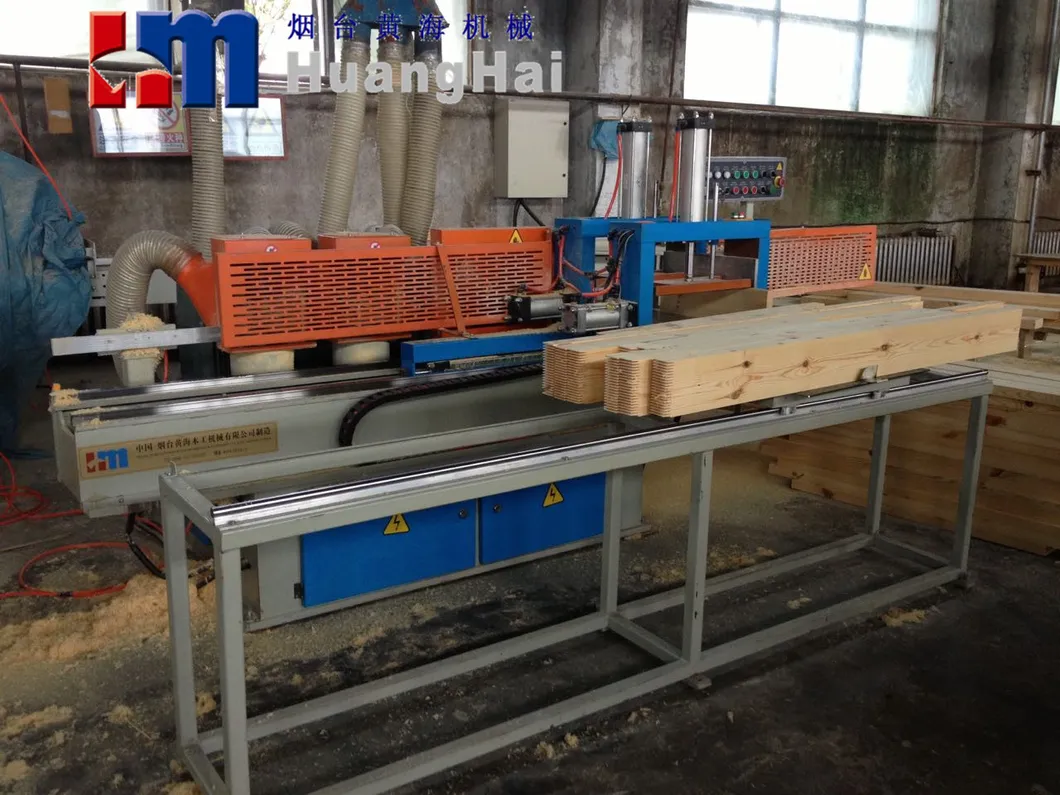

Product Gallery

Frequently Asked Questions

1. What is the primary use of the MXB3516 machine?

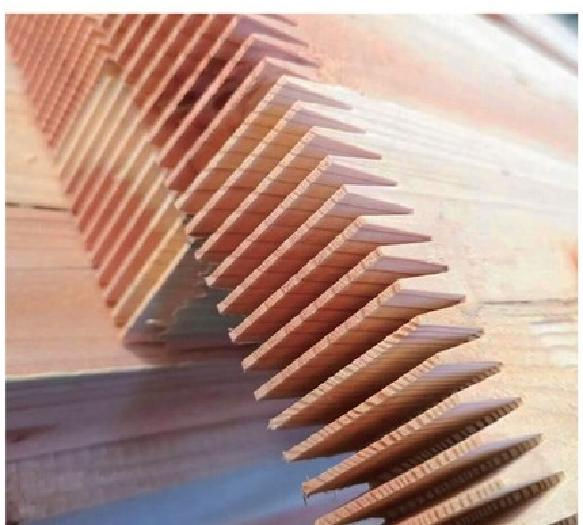

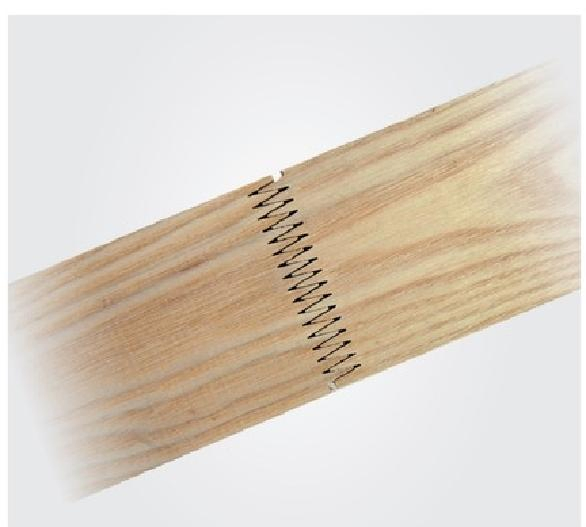

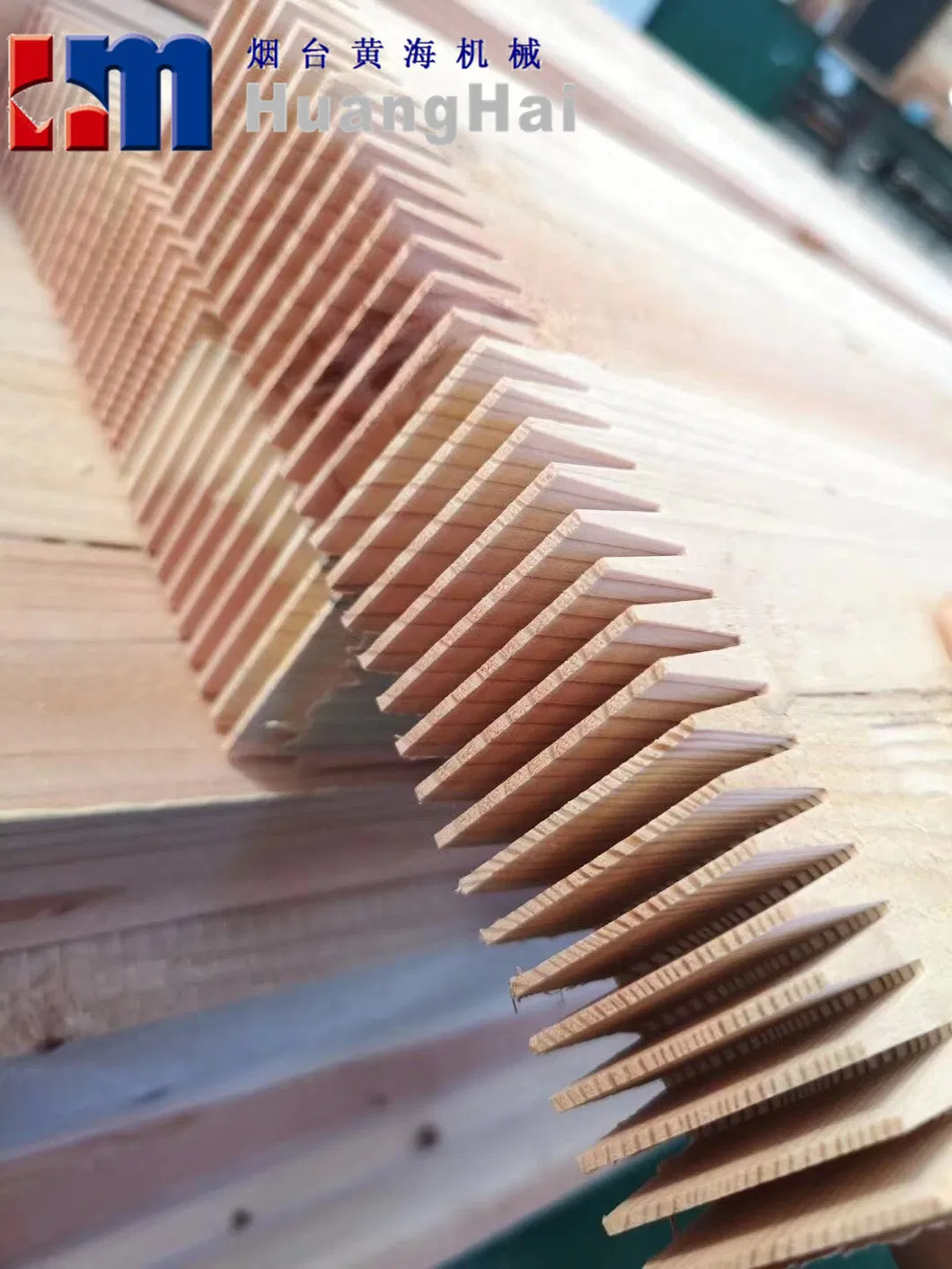

The MXB3516 is an automatic solid wood finger shaper used for gear milling and comb processing in finger jointing projects, ideal for furniture and door production.
2. What are the maximum machining dimensions?
This machine supports a maximum machining width of 600mm and a thickness range between 12mm and 150mm.
3. How does the machine ensure operational safety?
It features integrated pneumatic fixtures to securely hold workpieces and a PLC electrical control system to manage operations safely and precisely.
4. Is the worktable speed adjustable?
Yes, the worktable move speed is fully adjustable, allowing operators to optimize the workflow based on the wood type and project requirements.
5. What kind of certifications does the equipment have?
Our machinery is produced under ISO9001 system certification and meets CE certification standards for international quality and safety compliance.
6. What is the power requirement for the hydraulic system?
The machine is equipped with a 1.5kw hydraulic system power source, maintaining a pressure of 1-3Mpa for smooth operation.
